BH7884EFV - Stereo Speaker / Headphone Amplifier

Rohm

📥 Download Datasheet

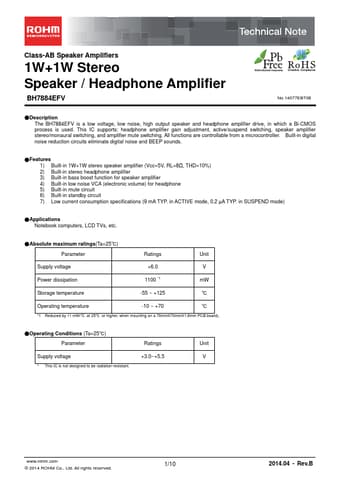

BH7884EFV Datasheet Preview — Preview of BH7884EFV PDF

datasheet Preview Page 2

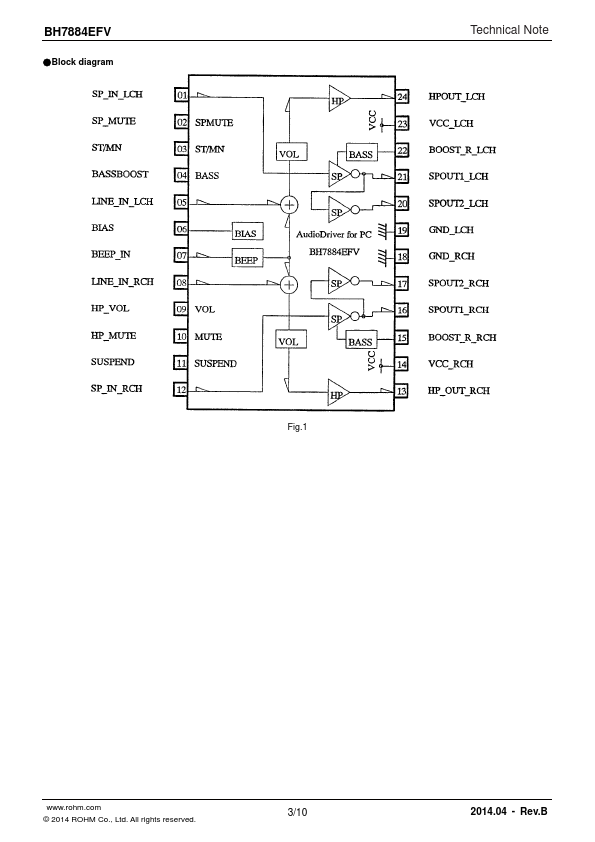

datasheet Preview Page 3

Datasheet Details

Part number: BH7884EFV
Manufacturer: ROHM ↗
File Size: 377.58 KB
Datasheet: BH7884EFV_Rohm.pdf
Description: Stereo Speaker / Headphone Amplifier

BH7884EFV Product details

Description

The BH7884EFV is a low voltage, low noise, high output speaker and headphone amplifier drive, in which a Bi-CMOS process is used.

Features

1) Built-in 1W+1W stereo speaker amplifier (Vcc=5V, RL=8Ω, THD=10%) 2) Built-in stereo headphone amplifier 3) Built-in bass boost function for speaker amplifier 4) Built-in low noise VCA (electronic volume) for headphone 5) Built-in mute circuit 6) Built-in standby circuit 7) Low current consumption specifications (9 mA TYP. in ACTIVE mode, 0.2 μA TYP. in.
