BP5302 Datasheet - Rohm

Power supply unit for LCDs

BP5302 Features

* 1) Wide input voltage range. ()5 to ) 14V) 2) Accurate output voltage. (

* 24 ± 0.75V) 3) High conversion efficiency. (typically 80%) 4) Built-in protection circuit. 5) Built-in ON / OFF switch. 6) Compact and light. 7) Available as an upright or L-shaped lead type. FAbsolute maximum ratings 36

BP5302 General Description

362 Regulator ICs FMeasurement circuit and application example BP5302 / BP5302F FOperation notes (1) Place I / O external capacitors as near as possible to the connection pins. In particular, make sure to minimize the impedance between the input-side capacitor (C1) and pin 9. (Reference valve: .

BP5302 Datasheet (69.40 KB)

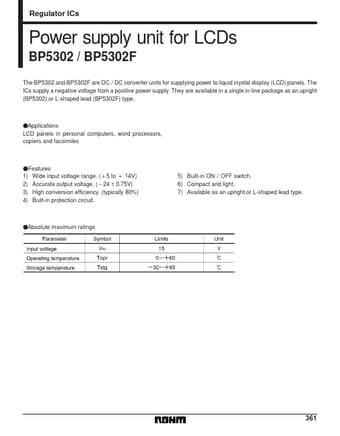

BP5302 Datasheet Preview — Preview of BP5302 PDF

Datasheet Details

Part number:

BP5302

Manufacturer:

ROHM ↗

File Size:

69.40 KB

Description:

Power supply unit for lcds.
Regulator ICs Power supply unit for LCDs BP5302 / BP5302F The BP5302 and BP5302F are DC / DC converter units for supplying power to liquid crystal di.
