BU21009MUV - Capacitive Sensor Switch Controller

BU21009MUV Description

Capacitive Sensor Control IC Series Capacitive Sensor Switch Control IC BU21009MUV No.09048EBT03 *.
BU21009MUV is the capacitive sensor controller for the switch function and slider function with 16 channels sensors.

BU21009MUV Features

* 1) Slider function 2) LED driver available www. DataSheet4U. com 3) 2 wire serial interface 4) Power supply = 2.5V to 3.3V, I/O power supply = 1.7V to 3.3V 5) Integrated 10bit AD converter, clock and reset 6) Package VQFN032V5050

BU21009MUV Applications

* It is possible to use it widely as a switch/slider such as a Mobile phone, Portable equipment, and Audiovisual apparatuses.
* Absolute Maximum Ratings (Ta=25℃) PARAMETER APPLIED VOLTAGE INPUT VOLTAGE STORAGE TEMPERATURE RANGE POWER DISSIPATION SYMBOL AVDD DVDD VAIN VDIN Tstg Pd RATING MIN -0.3 -0

📥 Download Datasheet

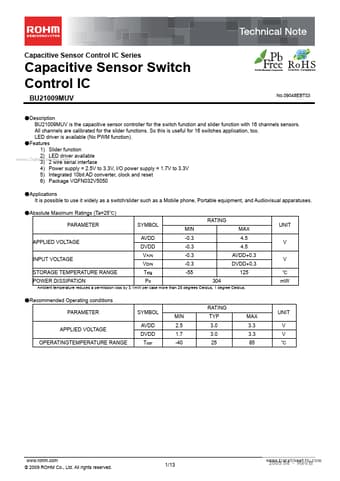

Preview of BU21009MUV PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BU21009MUV
Manufacturer
ROHM ↗
File Size
358.93 KB
Datasheet
BU21009MUV_Rohm.pdf
Description
Capacitive Sensor Switch Controller
