BU21051FS - Capacitive Sensor Switch Controller

BU21051FS Description

Capacitive Sensor Control IC Series Capacitive Sensor Switch Control IC BU21051FS *.
BU21051FS are the capacitive sensor controller with 2ch respectively.

BU21051FS Features

* 1) Port output interface www. DataSheet4U. com 2) Few software control 3) 2ch GPIO outputs 4) 5V power supply voltage available 5) Integrated 10bit AD converter, clock and reset 6) Package SSOP-A16

BU21051FS Applications

* It is possible to use it widely as a switch such as home electric appliance.
* Absolute Maximum Ratings (Ta=25℃) PARAMETER Applied voltage Input voltage Storage temperature range Power dissipation SYMBOL AVDD DVDD VAIN VDIN Tstg Pd RATING MIN -0.3 -0.3 -0.3 -0.3 -55 500 MAX 7.0 7.0 AVDD + 0.3 DVD

📥 Download Datasheet

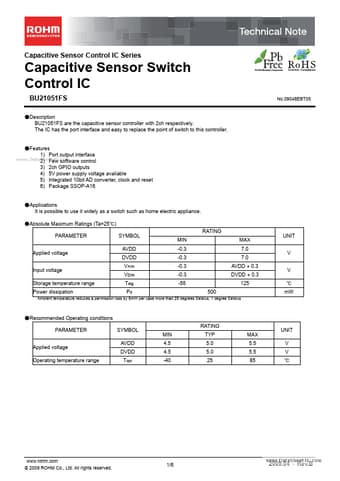

Preview of BU21051FS PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BU21051FS
Manufacturer
ROHM ↗
File Size
298.42 KB
Datasheet
BU21051FS_Rohm.pdf
Description
Capacitive Sensor Switch Controller
