BU25TA2WNVX - High-speed Load Response FULL CMOS LDO Regulators

Name: BU25TA2WNVX
SKU: BU25TA2WNVX-681859

Rohm

📥 Download Datasheet

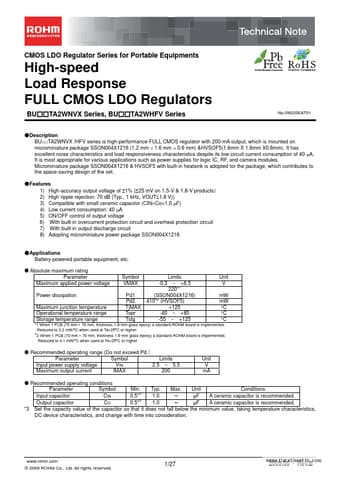

BU25TA2WNVX Datasheet Preview — Preview of BU25TA2WNVX PDF

Datasheet Details

Part number	BU25TA2WNVX
Manufacturer	ROHM
File Size	1.45 MB
Description	High-speed Load Response FULL CMOS LDO Regulators
Datasheet	BU25TA2WNVX_Rohm.pdf

BU25TA2WNVX Product details

Description

BU TA2WNVX /HFV series is high-performance FULL CMOS regulator with 200-mA output, which is mounted on microminiature package SSON004X1216 (1.2 mm  1.6 mm  0.6 mm) &HVSOF5(1.6mm X 1.6mm X0.6mm).

Features

acy output voltage of 1% (25 mV on 1.5-V & 1.8-V products） 2) High ripple rejection: 70 dB (Typ. , 1 kHz, VOUT1.8 V)) 3) Compatible with small ceramic capacitor (CIN=Co=1.0 F) 4) Low current consumption: 40 A 5) ON/OFF control of output voltage 6) With built-in overcurrent protection circuit and overheat protection circuit 7) With built-in output discharge circuit 8) Adopting microminiature power package SSON004X1216.
