DTA113ZE

PNP Digital transistors

DTA113ZE Features

* 1) Built-In Biasing Resistors,    R1 = 1.0kΩ, R2 = 2.2kΩ 2) Built-in bias resistors enable the configuration of  an inverter circuit without connecting external  input resistors (see inner circuit) . 3) Only the on/off conditions need to be set  for operation, making the circuit design easy. 4) Comp

DTA113ZE Datasheet (1.39 MB)

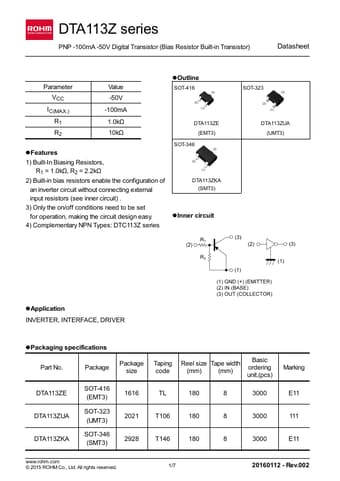

Preview of DTA113ZE PDF

Datasheet Details

Part number:

DTA113ZE

Manufacturer:

ROHM ↗

File Size:

1.39 MB

Description:

Pnp digital transistors.
DTA113Z series PNP -100mA -50V Digital Transistor (Bias Resistor Built-in Transistor) Datasheet Parameter VCC IC(MAX.) R1 R2 Value -50V -100mA 1.0k.
