EMA11 Dual Digital Transistors

EMA11 Description

EMA11 / UMA11N / FMA11A Transistors Emitter common (dual digital transistors) EMA11 / UMA11N / FMA11A !.

EMA11 Features

* 1) Two DTA143Z chips in a EMT or UMT or SMT package. 2) Mounting cost and area can be cut in half. !External dimensions (Units : mm) EMA11 / UMA11N (4) (3) 0.65 0.65 1.3 0.9 0.8 0.2 (5) 1.25 !Structure Epitaxial planar type PNP silicon transistor (Built-in resistor type) The following characte

📥 Download Datasheet

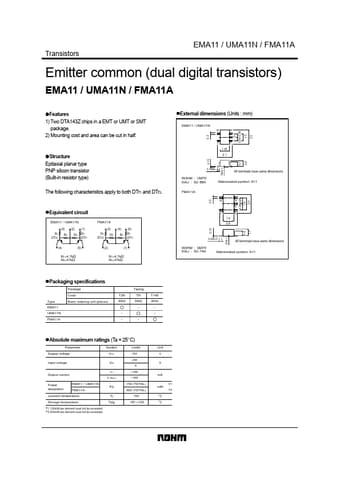

Preview of EMA11 PDF
datasheet Preview Page 2

Datasheet Details

Part number
EMA11
Manufacturer
ROHM ↗
File Size
61.35 KB
Datasheet
EMA11_Rohm.pdf
Description
Dual Digital Transistors
