EMA1002

1W Mono Audio Power Amplifier

Elite Semiconductor

EMA1002 Features

* a low-power consumption shutdown mode, and an internal thermal shutdown protection mechanism. Advanced pop & click circuitry is built in to eliminate noises that would otherwise occur during turn-on and turn-off transitions. The EMA1001 is unity-gain stable and can be configured by external gain-set

EMA1002 General Description

The EMA1002 is an audio power amplifier primarily designed for portable communication applications such as mobile phones and portable multimedia players (PMP). To an 8Ω BTL load, it can deliver 1 watt of continuous average power with less than 1% distortion (THD+N) from a 5VDC supply. The EMA1002 is.

EMA1002 Datasheet (359.39 KB)

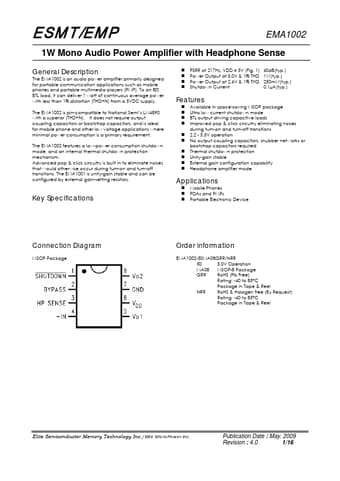

EMA1002 Datasheet Preview — Preview of EMA1002 PDF

Datasheet Details

Part number:

EMA1002

Manufacturer:

Elite Semiconductor

File Size:

359.39 KB

Description:

1w mono audio power amplifier.
