EMA1001-50MA08GRR, EMA1001 Datasheet - Elite Semiconductor

EMA1001-50MA08GRR 1W Mono Audio Power Amplifier

The EMA1001 is an audio power amplifier primarily designed for portable communication applications such as mobile phones and portable multimedia players (PMP). To an 8Ω BTL load, it can deliver 1 watt of continuous average power with less than 1% distortion (THD+N) from a 5VDC supply. EMA1001 Key .

EMA1001-50MA08GRR Features

* Available in space-saving MSOP package Ultra low current shutdown mode BTL output driving capacitive loads Improved pop & click circuitry eliminating noises during turn-on and turn-off transitions

* 2.2 - 5.5V operation No output coupling capacitors, snubber networks or b

EMA1001-EliteSemiconductor.pdf

This datasheet PDF includes multiple part numbers: EMA1001-50MA08GRR, EMA1001. Please refer to the document for exact specifications by model.

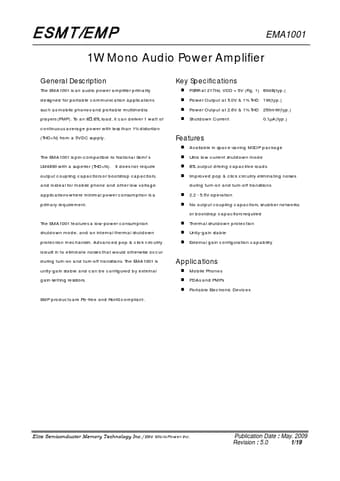

EMA1001-50MA08GRR Datasheet Preview Page 2 EMA1001-50MA08GRR Datasheet Preview Page 3

Datasheet Details

Part number:

EMA1001-50MA08GRR, EMA1001

Manufacturer:

Elite Semiconductor

File Size:

252.28 KB

Description:

1w mono audio power amplifier.

Note:

This datasheet PDF includes multiple part numbers: EMA1001-50MA08GRR, EMA1001.
Please refer to the document for exact specifications by model.
