EMA09N03CS Datasheet - Excelliance MOS

EMA09N03CS N-Channel MOSFET

    N‐Channel Logic Level Enhancement Mode Field Effect Transistor  Product Summary:  BVDSS  25V  D RDSON (MAX.)  9mΩ  ID  50A  G   UIS, Rg 100% Tested  S Pb‐Free Lead Plating & Halogen Free    ABSOLUTE MAXIMUM RATINGS (TC = 25 °C Unless Otherwise Noted)  PARAMETERS/TEST CONDITIONS  SYMBOL  Gate‐Source Voltage  Continuous Drain Current  Pulsed Drain Current1  TC = 25 °C  TC = 100 °C  Avalanche Current  Avalanche Energy  Repetitive Avalanche Energy2  L = 0.1mH, ID=37.5A, RG=25.

EMA09N03CS-ExcellianceMOS.pdf

Preview of EMA09N03CS PDF

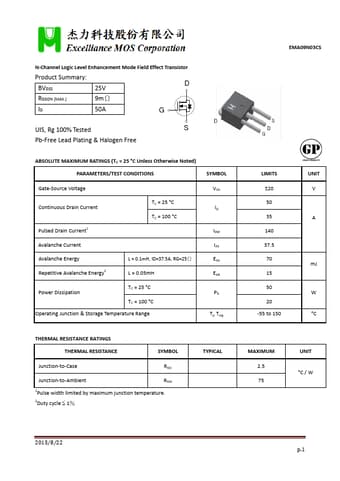

EMA09N03CS Datasheet Preview Page 2 EMA09N03CS Datasheet Preview Page 3

Datasheet Details

Part number:

EMA09N03CS

Manufacturer:

Excelliance MOS

File Size:

228.45 KB

Description:

N-channel mosfet.
