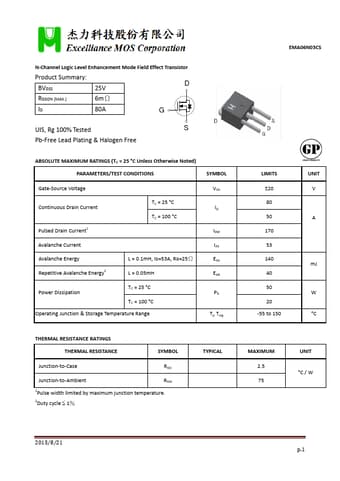

EMA06N03CS Datasheet - Excelliance MOS

EMA06N03CS MOSFET

N‐Channel Logic Level Enhancement Mode Field Effect Transistor Product Summary: BVDSS 25V D RDSON (MAX.) 6mΩ ID 80A G UIS, Rg 100% Tested S Pb‐Free Lead Plating & Halogen Free ABSOLUTE MAXIMUM RATINGS (TC = 25 °C Unless Otherwise Noted) PARAMETERS/TEST CONDITIONS SYMBOL Gate‐Source Voltage Continuous Drain Current Pulsed Drain Current1 TC = 25 °C TC = 100 °C Avalanche Current Avalanche Energy Repetitive Avalanche Energy2 L = 0.1mH, ID=53A, RG=25Ω L = 0.05mH Power Dissipation.

EMA06N03CS Datasheet (225.77 KB)
