RFU02VSM6S - Super Fast Recovery Diode

Rohm

📥 Download Datasheet

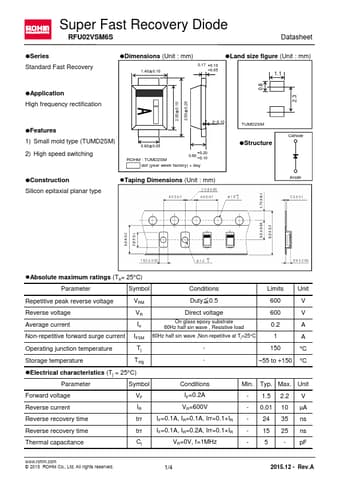

RFU02VSM6S Datasheet Preview — Preview of RFU02VSM6S PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: RFU02VSM6S
Manufacturer: ROHM ↗
File Size: 584.34 KB
Datasheet: RFU02VSM6S-Rohm.pdf
Description: Super Fast Recovery Diode

RFU02VSM6S Product details

Features

ll mold type (TUMD2SM) 2) High speed switching 0~0.10 0.80±0.05 ROHM : TUMD2SM 0.20 0.60 0.10 dot (year week factory) + day.
Construction Silicon epitaxial planar type.
Taping Dimensions (Unit : mm) TUMD2SM.
Structure Cathode Anode.
Absolute maximum ratings (Ta= 25°C) Parameter Symbol Conditions Limits Unit Repetitive peak reverse voltage VRM Duty≦0.5 600 V Reverse voltage Average current VR Direct voltage Io On glass epoxy substrate 60Hz half sin wave , R.
