RFUV1003 - 12GHZ TO 16GHZ GAAS MMIC IQ UPCONVERTER

RFMD

📥 Download Datasheet

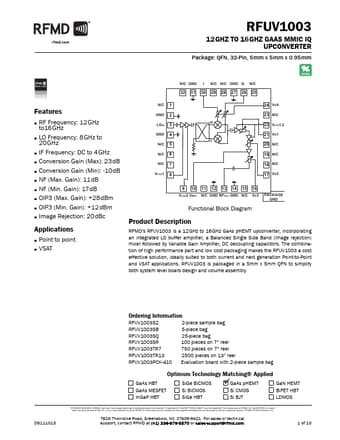

RFUV1003 Datasheet Preview — Preview of RFUV1003 PDF

Datasheet Details

Part number: RFUV1003
Manufacturer: RFMD
File Size: 0.98 MB
Datasheet: RFUV1003_RFMD.pdf
Description: 12GHZ TO 16GHZ GAAS MMIC IQ UPCONVERTER

RFUV1003 Product details

Description

RFMD's RFUV1003 is a 12GHz to 16GHz GaAs pHEMT upconverter, incorporating an integrated LO buffer amplifier, a Balanced Single Side Band (Image rejection) mixer followed by Variable Gain Amplifier, DC decoupling capacitors.

Features

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 Vc3 0 90.
RF Frequency: 12GHz to16GHz LO Frequency: 8GHz to 20GHz IF Frequency: DC to 4GHz Conversion Gain (Max): 23dB Conversion Gain (Min): -10dB NF (Max. Gain): 11dB NF (Min. Gain): 17dB OIP3 (Max. Gain): +28dBm OIP3 (Min. Gain): +12dBm Image Rejection: 20dBc Point to point VSAT 22 VLPA1,2 21 Vc1 20 N/C 19 N/C 18 N/C 17 Vc2 VLOA2 VMPA N/C GND.
