RFUV1703

21GHz TO 26.5GHz GaAs MMIC IQ UPCONVERTER

RF Micro Devices

RFUV1703 Features

* GND LOIN GND N/C N/C N/C N/C

* RF Frequency: 21GHz to 26.5GHz LO Frequency (LSB): 10.5GHz to 15.2GHz LO Frequency (USB): 8.5GHz to 13.25GHz IF Frequency: DC to 4GHz Conversion Gain (Max): 21dB Conversion Gain (Min): -10dB NF (Max. Gain): 9dB O

RFUV1703 General Description

RFMD's RFUV1703 is a 21GHz to 26.5GHz GaAs pHEMT upconverter, incorporating an integrated doubler, LO buffer amplifier, a balanced single sideband (image rejection) mixer followed by Variable Gain Amplifier, DC decoupling capacitors. The combination of high performance part and low-cost packaging ma.

RFUV1703 Datasheet (1.39 MB)

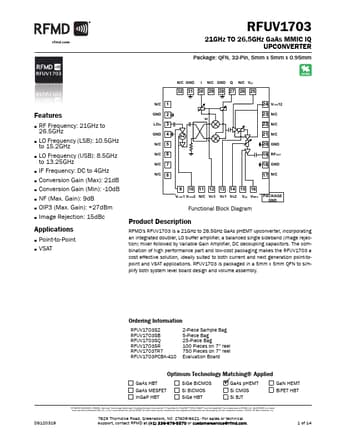

RFUV1703 Datasheet Preview — Preview of RFUV1703 PDF

Datasheet Details

Part number:

RFUV1703

Manufacturer:

RF Micro Devices

File Size:

1.39 MB

Description:

21ghz to 26.5ghz gaas mmic iq upconverter.
RFUV1703 RFUV1703 21GHz TO 26.5GHz GaAs MMIC IQ UPCONVERTER Package: QFN, 32-Pin, 5mm x 5mm x 0.95mm N/C GND I N/C GND Q N/C Vg1 32 N/C 31 30.
