RLD2WMGS1 Datasheet - Rohm

RLD2WMGS1 660nm High Power / 780nm Low Power Dual Wave Laser

RLD2WMGS1 Features

* 1) DVD / CD Po (Optical output) : 240mW / 20mW 2) Emission point distance accuracy : 110µm ± 1µm 3) High Heat Radiation Type : Slim frame package 5.15 3.6MAX 2.1 3.55MAX 1.5 0.45(∆Z) 3MAX 2.5 1 1 LD (0.6) 3 LD 3-0.55MAX 5 2 GND 1 LD (650nm) anode 2 GND cathode 3 LD (780nm) anode 1.3 1.3

RLD2WMGS1 Datasheet (102.31 KB)

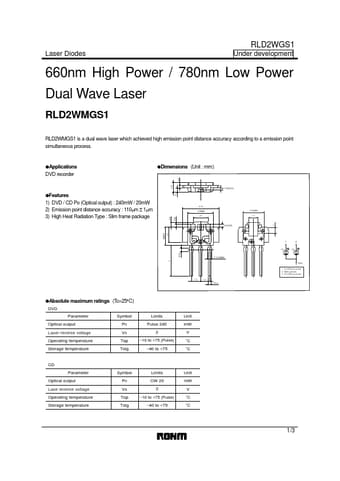

Preview of RLD2WMGS1 PDF
RLD2WMGS1 Datasheet Preview Page 2 RLD2WMGS1 Datasheet Preview Page 3

Datasheet Details

Part number:

RLD2WMGS1

Manufacturer:

ROHM ↗

File Size:

102.31 KB

Description:

660nm high power / 780nm low power dual wave laser.
