RLD2WMNL2-01x Datasheet - ROHM

RLD2WMNL2-01x - Laser Diode

650/780nm 2wavelength Single Mode Laser Diode RLD2WMNL2 -01x Datasheet Application Optical disk pickup Sensor Etc.

Outline view Merit Single mode Φ5.6 metal stem Absolute Maximum Ratings (Tc=25°C) 【780nm LD / 650nm LD】 Parameter Symbol Ratings Unit Optical output Po 7 mW LD Vr 2V Reverse voltage PIN PD Vr(PD) 20 V Operating temp.

Top -30 to 80 °C Storage temp.

Tstg -40 to 85 °C Characteristics (Tc=25°C) 【780nm LD】 Parameter Symbol Conditions Threshold current Ith

RLD2WMNL2-01x-ROHM.pdf

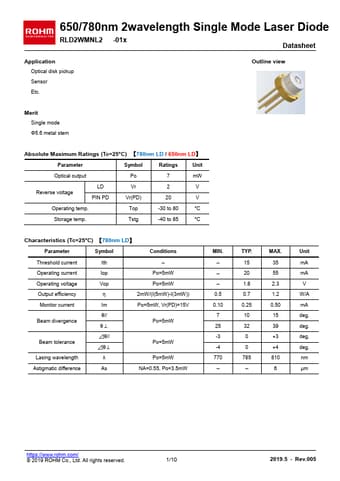

Preview of RLD2WMNL2-01x PDF
RLD2WMNL2-01x Datasheet Preview Page 2 RLD2WMNL2-01x Datasheet Preview Page 3

Datasheet Details

Part number:

RLD2WMNL2-01x

Manufacturer:

ROHM ↗

File Size:

771.59 KB

Description:

Laser diode.
