S98100MG

Infrared Laser Diode

S98100MG Features

* Lasing Mode Structure: multi mode

* Peak Wavelength : typ. 980 nm

* Optical Ouput Power: 100 mW

* Package: 5.6 mm Electrical Connection Pin Configuration n-type PIN Function 1 LD Cathode 2 LD Anode, PD Cathode 3 PD Anode Bottom View Absolute Maximum Ratings (TC=20

S98100MG Datasheet (415.59 KB)

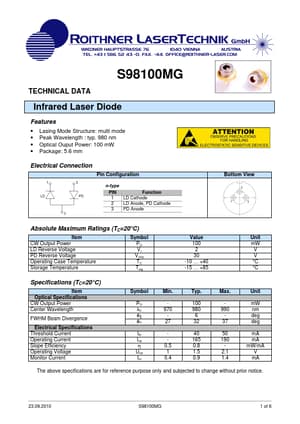

Preview of S98100MG PDF

Datasheet Details

Part number:

S98100MG

Manufacturer:

Roithner LaserTechnik

File Size:

415.59 KB

Description:

Infrared laser diode.
