S9850MBA Infrared Laser Diode

S9850MBA Description

S9850MBA TECHNICAL DATA Infrared Laser Diode .

S9850MBA Features

* Lasing Mode Structure: single mode
* Peak Wavelength : typ. 980 nm
* Optical Ouput Power: 50 mW
* Package: 5.6 mm, without PD and window Electrical Connection Pin Configuration PIN Function 1 LD Cathode 2 LD Anode 3 Bottom View Absolute Maximum Ratings (TC=20°C)

📥 Download Datasheet

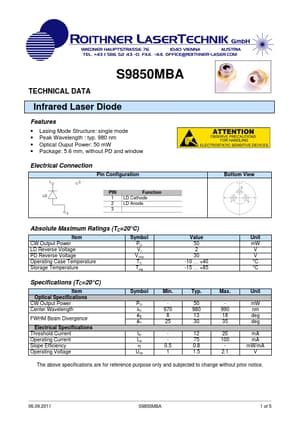

Preview of S9850MBA PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
S9850MBA
Manufacturer
Roithner LaserTechnik
File Size
318.11 KB
Datasheet
S9850MBA-RoithnerLaserTechnik.pdf
Description
Infrared Laser Diode
