S9850MG Infrared Laser Diode

S9850MG Description

S9850MG TECHNICAL DATA Infrared Laser Diode .

S9850MG Features

* Lasing Mode Structure: single mode
* Peak Wavelength : typ. 980 nm
* Optical Ouput Power: 50 mW
* Package: 5.6 mm Electrical Connection Pin Configuration n-type PIN Function 1 LD Cathode 2 LD Anode, PD Cathode 3 PD Anode Bottom View Absolute Maximum Ratings (TC=20

📥 Download Datasheet

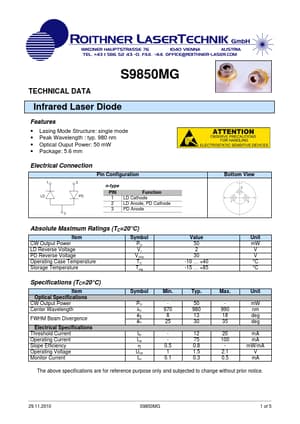

Preview of S9850MG PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
S9850MG
Manufacturer
Roithner LaserTechnik
File Size
334.48 KB
Datasheet
S9850MG-RoithnerLaserTechnik.pdf
Description
Infrared Laser Diode
