RU120N15R - N-Channel Advanced Power MOSFET

Datasheet Summary

Description

TO-220 Absolute Maximum Ratings Symbol Parameter Common Ratings (TA=25°C Unless Otherwise Noted) VDSS Drain-Source Voltage VGSS Gate-Source Voltage TJ Maximum Junction Temperature TSTG IS Storage Temperature Range Diode Continuous Forward Current Mounted on Large Heat Sink IDP 300µs Pul

Features

150V/120A RDS (ON)=15mΩ(Typ. ) @ VGS=10V.
Avalanche Rated.
Reliable and Rugged.
Lead Free and Green Devices Available.

Ruichips

📥 Download Datasheet

Datasheet Details

Part number	RU120N15R
Manufacturer	Ruichips
File Size	320.92 KB
Description	N-Channel Advanced Power MOSFET

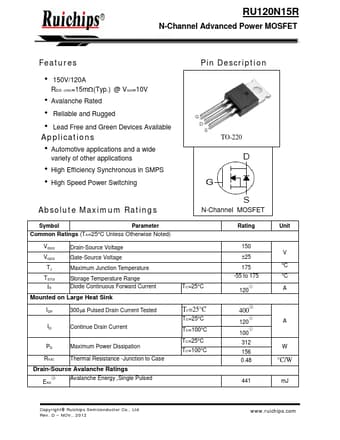

Datasheet	RU120N15R Datasheet
Additional preview pages of the RU120N15R datasheet.
