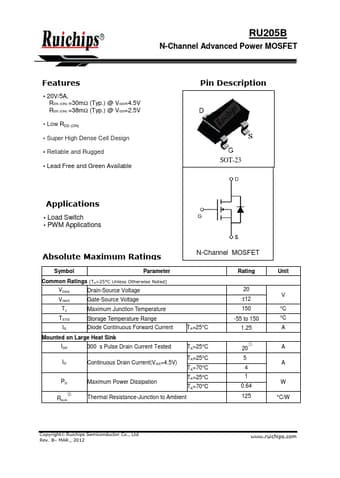

RU205B
Features
- 20V/5A, RDS (ON) =30mΩ (Typ.) @ VGS=4.5V RDS (ON) =38mΩ (Typ.) @ VGS=2.5V
- Low RDS (ON)
- Super High Dense Cell Design
- Reliable and Rugged
- Lead Free and Green Available
Pin Description
SOT-23
Applications
- Load Switch
- PWM Applications
Absolute Maximum Ratings
N-Channel MOSFET
Symbol
Parameter mon Ratings (TA=25°C Unless Otherwise Noted)
VDSS
Drain-Source Voltage
VGSS
Gate-Source Voltage
TJ Maximum Junction Temperature
TSTG
Storage Temperature Range
IS Diode Continuous Forward Current
TA=25°C
Mounted on Large Heat Sink IDP 300μs Pulse Drain Current Tested
TA=25°C
②
RθJA
Continuous Drain Current(VGS=4.5V)
TA=25°C TA=70°C
Maximum Power Dissipation
TA=25°C TA=70°C
Thermal Resistance-Junction to Ambient
Rating
20 ±12 150 -55 to 150 1.25
①
20 5 4 1 0.64...
