RUS4510K Datasheet, Barrier Rectifier, Ruichips

High efficiency barrier rectifier

📥 Download PDF (206.76 KB)

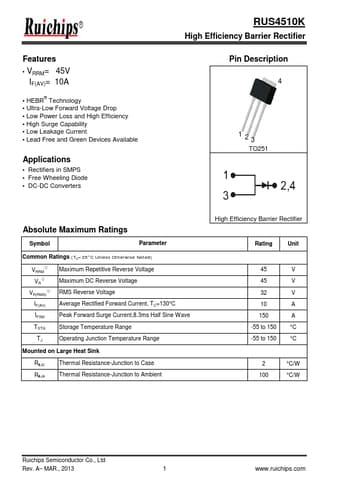

RUS4510K Datasheet Preview Page 1 — Preview of RUS4510K Datasheet

PDF File Details

Part number:

RUS4510K

Manufacturer:

Ruichips

File Size:

206.76 KB

Download:

📄 Download the RUS4510K Datasheet PDF

Description:

High efficiency barrier rectifier.
4
1 23 TO251

Absolute Maximum Ratings

Symbol

Parameter

Common Ratings (TC=25°C Unless Otherwise Noted)

VRRM① VR①
VR.

✔ RUS4510K Features

VRRM= 45V IF(AV)= 10A
HEBR® Technology
Ultra-Low Forward Voltage Drop
Low Power Loss and High Efficiency
High Surge Capability
Low Leakage Current
Lead Free

✔ RUS4510K Application

Rectifiers in SMPS
Free Wheeling Diode
DC-DC Converters RUS4510K High Efficiency Barrier Rectifier Pi
