RUS1H21R Power Schottky Barrier Diode

TO220 Absolute Maximum Ratings Symbol Parameter Common Ratings (TC=25°C Unless Otherwise Noted) VRRM VR Maximum Repetitive Reverse Voltage Maximum DC Reverse Voltage IF(AV) per Device Average Rectified Forward Current, TC=130°C per Diode IFSM TSTG TJ Peak Forward Surge Current,8.3ms Half S.

RUS1H21R Features

* VRRM= 100V IF(AV)=2x 10A

* Low Power Loss and High Efficiency

* High Surge Capability

* Low Leakage Current

* Low Forward Voltage Drop

* Lead Free and Green Devices Available Applications

* Rectifiers in SMPS

* Free Wheeling Diode

RUS1H21R-Ruichips.pdf

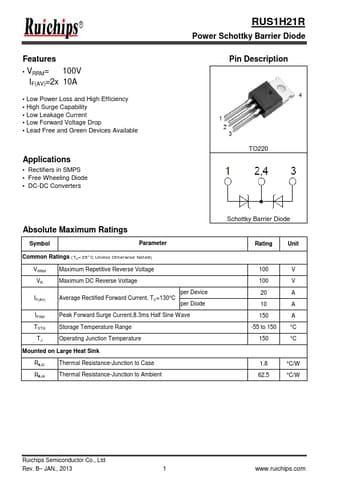

RUS1H21R Datasheet Preview — Preview of RUS1H21R PDF

Datasheet Details

Part number:

RUS1H21R

Manufacturer:

Ruichips

File Size:

221.49 KB

Description:

Power schottky barrier diode.
