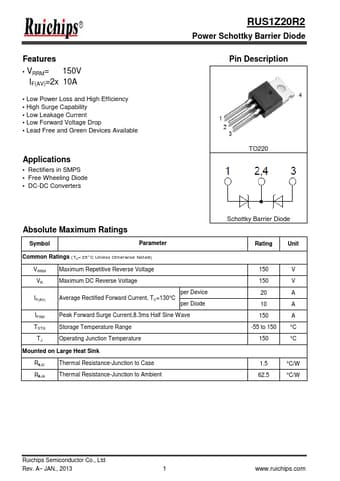

RUS1Z20R2 Datasheet, Diode, Ruichips

✔ RUS1Z20R2 Features

VRRM= 150V IF(AV)=2x 10A
Low Power Loss and High Efficiency
High Surge Capability
Low Leakage Current
Low Forward Voltage Drop
Lead Free and Green Devices Ava

✔ RUS1Z20R2 Application

Rectifiers in SMPS
Free Wheeling Diode
DC-DC Converters RUS1Z20R2 Power Schottky Barrier Diode Pin De

PDF File Details

Ruichips manufacturer logo

Part number:

RUS1Z20R2

Manufacturer:

Ruichips

File Size:

221.59kb

Download:

📄 Datasheet

Description:

Power schottky barrier diode. TO220 Absolute Maximum Ratings Symbol Parameter Common Ratings (TC=25°C Unless Otherwise Noted) VRRM VR Maximum Repetitive Reve

📥 Download PDF (221.59kb)
