MS90C365 - Flat Panel Display Transmitter

The MS90C365 transmitter converts 21 bits of LVCMOS/LVTTL data into four LVDS (Low Voltage Differential Signaling) data streams.

A phase-locked transmit clock is transmitted in parallel with the data streams.

At a transmit clock frequency of 150MHz, 18 bits of RGB data and 3 bits of LCD timing and c

MS90C365 Features

* Frequency Range:20-150MHz

* Single Supply:3.3V

* I/O power supply compatible with 1.8V, 3.3V

* Power-down mode < 200µW (max)

* Supports VGA, SVGA, XGA and Dual Pixel SXGA.

* Up to 525 Megabytes/sec bandwidth

* reduced swing LVDS to reduce EMI(200mV or 345mV Optional)

MS90C365-Ruimeng.pdf

Preview of MS90C365 PDF

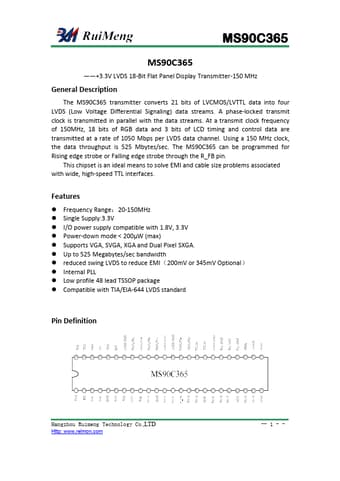

MS90C365 Datasheet Preview Page 2 MS90C365 Datasheet Preview Page 3
