MS90C386B Datasheet - Ruimeng Technology

24bits COLOR LVDS Receiver

MS90C386B Features

* Clock range：20-175MHz

* Narrow bus reduces cable size

* Single 3.3V supply

* Power-down Mode

* Supports VGA、SVGA、XGA、SXGA

* Up to 4.9Gbps throughput

* Up to 612.5Megabytes/sec bandwidth

* PLL requires no external components

* Compatible with TIA/EIA-644 LVDS sta

MS90C386B General Description

The MS90C386B receiver is designed to support pixel data transmission between Host and Flat Panel Display from NTSC up to SXGA resolutions. The MS90C386B converts the LVDS data streams back into 28bits of CMOS/TTL data with the choice of the rising edge or falling edge clock for the convenience with.

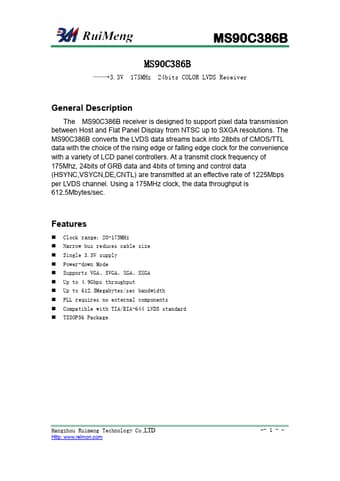

MS90C386B Datasheet (584.73 KB)

MS90C386B Datasheet Preview — Preview of MS90C386B PDF

Datasheet Details

Part number:

MS90C386B

Manufacturer:

Ruimeng Technology

File Size:

584.73 KB

Description:

24bits color lvds receiver.
