EKI10126 N Channel Trench Power MOSFET

EKI10126 Description

100 V, 66 A, 8.8 mΩ Low RDS(ON) N ch Trench Power MOSFET EKI10126 .

EKI10126 Features

* V(BR)DSS
* 100 V (ID = 100 µA)
* ID

EKI10126 Applications

* DC-DC converters
* Synchronous Rectification
* Power Supplies Equivalent circuit D(2)(4) G(1) S(3) Not to scale Absolute Maximum Ratings
* Unless otherwise specified, TA = 25 °C Parameter Symbol Drain to Source Voltage VDS Gate to Source Voltage VGS Continuous Drain Cur

📥 Download Datasheet

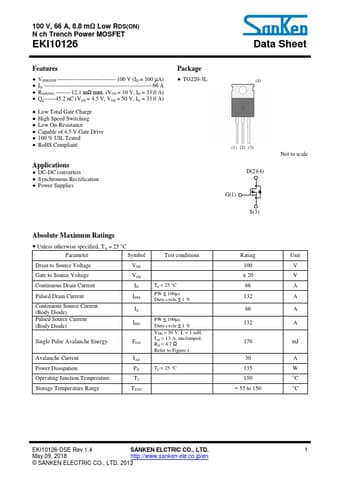

Preview of EKI10126 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
EKI10126
Manufacturer
Sanken ↗
File Size
605.23 KB
Datasheet
EKI10126-SANKEN.pdf
Description
N Channel Trench Power MOSFET
