EKI04047 - N Channel Trench Power MOSFET

SANKEN

📥 Download Datasheet

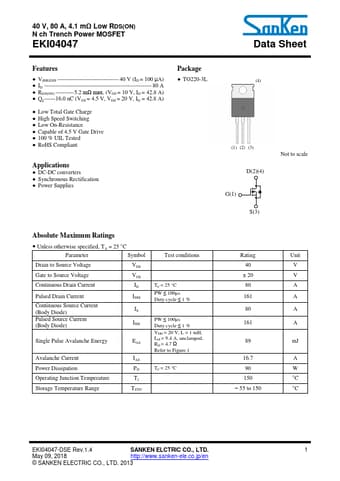

EKI04047 Datasheet Preview — Preview of EKI04047 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: EKI04047
Manufacturer: Sanken ↗
File Size: 604.54 KB
Datasheet: EKI04047-SANKEN.pdf
Description: N Channel Trench Power MOSFET

EKI04047 Product details

Features

V(BR)DSS --------------------------------- 40 V (ID = 100 µA).
ID ---------------------------------------------------------- 80 A.
RDS(ON) ----------5.2 mΩ max. (VGS = 10 V, ID = 42.8 A).
Qg------16.0 nC (VGS = 4.5 V, VDS = 20 V, ID = 42.8 A).
Low Total Gate Charge.
High Speed Switching.
Low On-Resistance.
Capable of 4.5 V Gate Drive.
100 % UIL Tested.
RoHS Compliant Package TO-220 (4) D (1) (2) (3) GDS.
