EKI07117 - N-Channel MOSFET

EKI07117 Description

isc N-Channel MOSFET Transistor .
Designed for use in switch mode power supplies and general purpose applications.

EKI07117 Features

* Drain Current
* ID=62A@ TC=25℃
* Drain Source Voltage- : VDSS=75V(Min)
* Static Drain-Source On-Resistance : RDS(on) = 9.7mΩ(Max)
* 100% avalanche tested

EKI07117 Applications

* ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VDSS Drain-Source Voltage 75 V VGS Gate-Source Voltage-Continuous ±20 V ID Drain Current-Continuous 62 A PD Total Dissipation @TC=25℃ 116 W TJ Max. Operating Junction Temperature 150 ℃ Tstg Storage Temperature -

📥 Download Datasheet

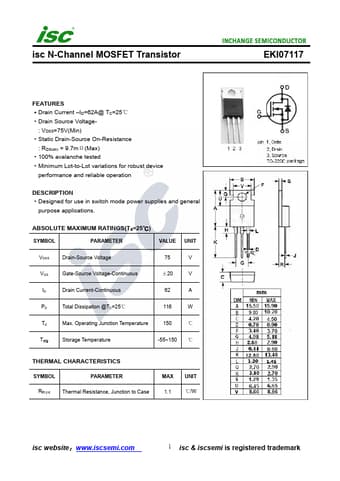

Preview of EKI07117 PDF
datasheet Preview Page 2

Datasheet Details

Part number
EKI07117
Manufacturer
INCHANGE
File Size
245.84 KB
Datasheet
EKI07117-INCHANGE.pdf
Description
N-Channel MOSFET
