STR5A164D, STR5A100D - Primary Side Regulation Off-Line PWM Controllers

Name: STR5A164D
SKU: STR5A164D-793542

SANKEN

📥 Download Datasheet

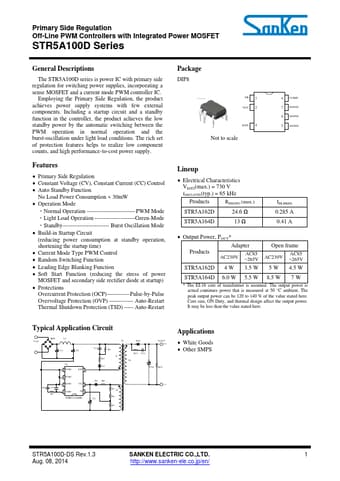

STR5A164D Datasheet Preview — This datasheet PDF includes multiple part numbers: STR5A164D, STR5A100D. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	STR5A164D, STR5A100D
Manufacturer	Sanken
File Size	807.97 KB
Description	Primary Side Regulation Off-Line PWM Controllers
Datasheet	STR5A100D-SANKEN.pdf
Note	This datasheet PDF includes multiple part numbers: STR5A164D, STR5A100D. Please refer to the document for exact specifications by model.

STR5A164D Product details

Description

The STR5A100D series is power IC with primary side regulation for switching power supplies, incorporating a sense MOSFET and a current mode PWM controller IC.

Features

helps to realize low component counts, and high performance-to-cost power supply. Features.
Primary Side Regulation.
Constant Voltage (CV), Constant Current (CC) Control.
Auto Standby Function No Load Power Consumption < 30mW.
Operation Mode Normal Operation -------------------------- PWM Mode Light Load Operation --.
