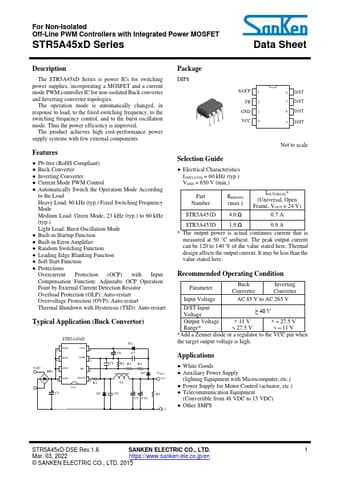

STR5A453D, STR5A451D Off-Line PWM Controller

STR5A453D Description

For Non-Isolated Off-Line PWM Controllers with Integrated Power MOSFET STR5A45xD Series Data Sheet .
The STR5A45xD Series is power ICs for switching power supplies, incorporating a MOSFET and a current mode PWM controller IC for non-isolated Buck conv.

STR5A453D Features

* Pb-free (RoHS Compliant)
* Buck Converter
* Inverting Converter
* Current Mode PWM Control
* Automatically Switch the Operation Mode According to the Load Heavy Load: 60 kHz (typ. ) Fixed Switching Frequency Mode Medium Load: Green Mode, 23 kHz (typ. ) to 60 kHz (typ. ) Light Load

STR5A453D Applications

* White Goods
* Auxiliary Power Supply (lighting Equipment with Microcomputer, etc. )
* Power Supply for Motor Control (actuator, etc. )
* Telecommunication Equipment (Convertible from 48 VDC to 15 VDC)
* Other SMPS STR5A45xD-DSE Rev.1.6 SANKEN ELECTRIC CO. , LTD. 1 Mar. 03, 202

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: STR5A453D, STR5A451D. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
STR5A453D, STR5A451D
Manufacturer
Sanken ↗
File Size
705.82 KB
Datasheet
STR5A451D-Sanken.pdf
Description
Off-Line PWM Controller
Note
This datasheet PDF includes multiple part numbers: STR5A453D, STR5A451D.
Please refer to the document for exact specifications by model.
