STR5A464S, STR5A464D Off-Line PWM Controller

📥 Download Datasheet  Datasheet Preview Page 1

Description

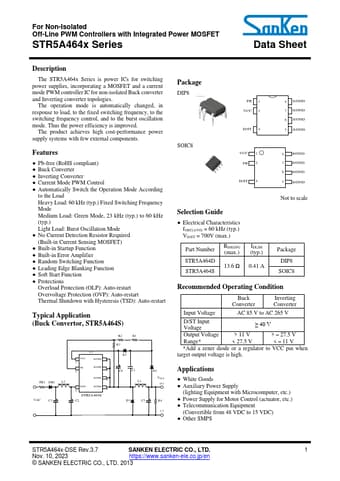

For Non-Isolated Off-Line PWM Controllers with Integrated Power MOSFET STR5A464x Series Data Sheet .
The STR5A464x Series is power ICs for switching power supplies, incorporating a MOSFET and a current mode PWM controller IC for non-isolated Buck conv.

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: STR5A464S, STR5A464D. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
STR5A464S, STR5A464D
Manufacturer
Sanken ↗
File Size
618.75 KB
Datasheet
STR5A464D-Sanken.pdf
Description
Off-Line PWM Controller
Note
This datasheet PDF includes multiple part numbers: STR5A464S, STR5A464D.
Please refer to the document for exact specifications by model.

Features

* Pb-free (RoHS compliant)
* Buck Converter
* Inverting Converter
* Current Mode PWM Control
* Automatically Switch the Operation Mode According to the Load Heavy Load: 60 kHz (typ. ) Fixed Switching Frequency Mode Medium Load: Green Mode, 23 kHz (typ. ) to 60 kHz (typ. ) Light Load

Applications

* White Goods
* Auxiliary Power Supply (lighting Equipment with Microcomputer, etc. )
* Power Supply for Motor Control (actuator, etc. )
* Telecommunication Equipment (Convertible from 48 VDC to 15 VDC)
* Other SMPS STR5A464x-DSE Rev.3.7 SANKEN ELECTRIC CO. , LTD. 1 Nov. 10, 202
