MBR15150 - Schottky Barrier Rectifier

Datasheet Summary

Features

  • 。High Current Capability.
  • 。Low Forward Voltage Drop.
  • 。Low Power Loss，High Efficiency Mechanical Data.
  • : Case: Molded Plastic.
  • : Polarity: Symbols molded or marked on body.
  • : Mounting Position: Any.
  • : 2.00 Weight: 2.00 Grams TA = 25℃ 。 Maximum Ratings & Thermal Characteristics Ratings at 25℃ ambient temperature unless otherwise specified. Symbols MBR 15150 MBR 15200 Maximum repetitive peak reverse voltage VRRM 150 200 Maximum RMS voltage VRMS 105.

📥 Download Datasheet

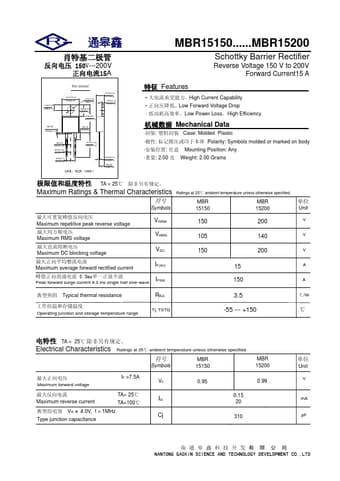

Datasheet preview – MBR15150
