SS129 - Unipolar Digital Digital Switch

Name: SS129
SKU: SS129-725582

SEC

The SS129 by SEC is a Unipolar Digital Digital Switch. Below is the official datasheet preview.

Datasheet Details

Part number	SS129
Manufacturer	SEC
File Size	351.65 KB
Description	Unipolar Digital Digital Switch
Datasheet	SS129_SEC.pdf

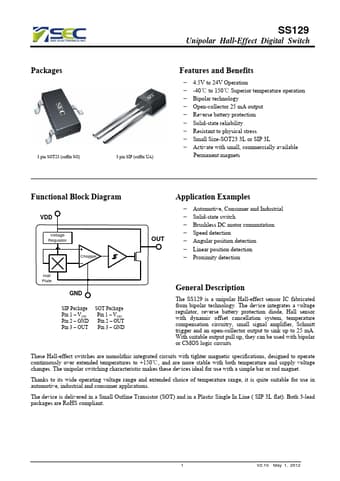

Additional preview pages of the SS129 datasheet.

The SS129 is a unipolar Hall-effect sensor IC fabricated from bipolar technology.

4.5V to 24V Operation -40℃ to 150℃ Superior temperature operation Bipolar technology Open-collector 25 mA output Reverse battery protection Solid-state reliability Resistant to physical stress Small Size-SOT23 3L or SIP 3L Activate with small, commercially available Permanent magnets 3 pin SOT23 (suffix SO) 3 pin SIP (suffix UA) Functional Block Diagram VDD Voltage Regulator.
