SS1101

Unipolar Hall Switch-Low Sensitivity

SEC

SS1101 Features

* 3.5V to 24V Operation -40℃ to 150℃ Superior temperature operation CMOS technology Low current consumption Chopper-stabilized amplifier stage Open drain output Low sensitivity Small Size-SOT23 3L or SIP 3L both

SS1101 General Description

The S1101 is a unipolar Hall-effect sensor IC fabricated from CMOS technology. The device integrates a voltage regulator, Hall sensor with dynamic offset cancellation system, small signal amplifier, Schmitt trigger and an open-drain output driver. With suitable output pull up, they can be used with .

SS1101 Datasheet (321.56 KB)

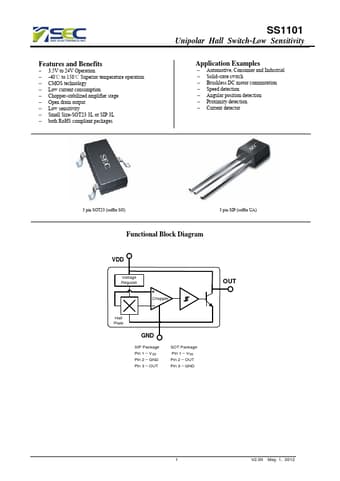

SS1101 Datasheet Preview — Preview of SS1101 PDF

Datasheet Details

Part number:

SS1101

Manufacturer:

SEC

File Size:

321.56 KB

Description:

Unipolar hall switch-low sensitivity.
