SS1102

Unipolar Hall Switch-Low Sensitivity

SS1102 Features

* 3.5V to 24V Operation -40℃ to 150℃ Superior temperature operation CMOS technology Low current consumption Chopper-stabilized amplifier stage Open drain output Low sensitivity Small Size-SOT23 3L or SIP 3L both

SS1102 General Description

The S1101 is a unipolar Hall-effect sensor IC fabricated from CMOS technology. The device integrates a voltage regulator, Hall sensor with dynamic offset cancellation system, small signal amplifier, Schmitt trigger and an open-drain output driver. With suitable output pull up, they can be used with .

SS1102 Datasheet (320.82 KB)

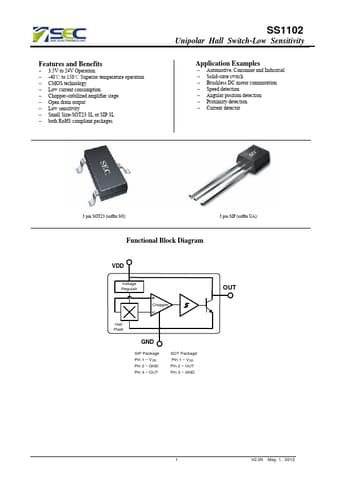

Preview of SS1102 PDF

Datasheet Details

Part number:

SS1102

Manufacturer:

SEC

File Size:

320.82 KB

Description:

Unipolar hall switch-low sensitivity.
