SS1103 - Unipolar Hall-Effect Digital Switch

Product Overview

SEC

Part number	SS1103
Manufacturer	SEC
File Size	274.17 KB
Description	Unipolar Hall-Effect Digital Switch
Datasheet	SS1103 Datasheet

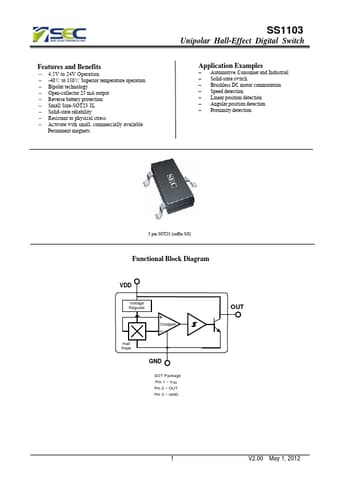

Additional preview pages of the SS1103 datasheet.

The S1103 is a unipolar Hall-effect sensor IC fabricated from bipolar technology.

4.5V to 24V Operation -40℃ to 150℃ Superior temperature operation Bipolar technology Open-collector 25 mA output Reverse battery protection Small Size-SOT23 3L Solid-state reliability Resistant to physical stress Activate with small, commercially available Permanent magnets.
