SS110AF, SS12AF - 1.0Amp Surface Mount Schottky Barrier Rectifiers

SS110AF Description

Zhi Run Electronic Co.Ltd Production Data Sheet SS12AF~SS120AF 1.0Amp Surface Mount Schottky Barrier Rectifiers .

SS110AF Applications

* Metal silicon junction,majority carrier conduction Low power loss,high efficiency Built-in strain relief,ideal for automated placement High forward surge current capability High temperature soldering guaranteed: 250 C/10 seconds at terminals SMAF Mechanical Data Case : JEDEC SMAF molded plastic bo

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SS110AF, SS12AF. Please refer to the document for exact specifications by model.

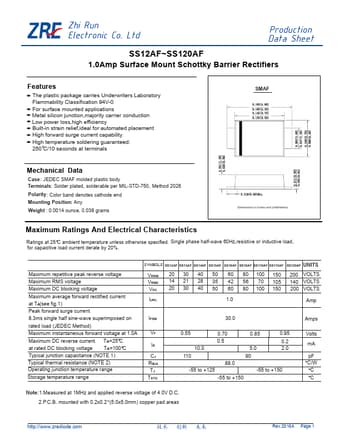

datasheet Preview Page 2

Datasheet Details

Part number
SS110AF, SS12AF
Manufacturer
ZRE
File Size
161.51 KB
Datasheet
SS12AF-ZRE.pdf
Description
1.0Amp Surface Mount Schottky Barrier Rectifiers
Note
This datasheet PDF includes multiple part numbers: SS110AF, SS12AF.
Please refer to the document for exact specifications by model.
