SS441 Unipolar Hall-Effect Digital Switch

SS441 Description

SS441 Unipolar Hall-Effect Digital Switch .
The SS441 is a unipolar Hall-effect sensor IC fabricated from bipolar technology.

SS441 Features

* 4.5V to 24V Operation -40℃ to 150℃ Superior temperature operation Bipolar technology Open-collector 25 mA output Reverse battery protection Small Size-SOT23 3L or SIP 3L Solid-state reliability Resistant to phy

SS441 Applications

* The device is delivered in a Small Outline Transistor (SOT) or in a Plastic Single In Line (SIP 3L flat). Both 3-lead packages are RoHS compliant. Glossary of Terms MilliTesla (mT), RoHS Operating Point (B OP ) Gauss Units of magnetic flux density: 1mT = 10 Gauss Restriction of Hazardous Substanc

📥 Download Datasheet

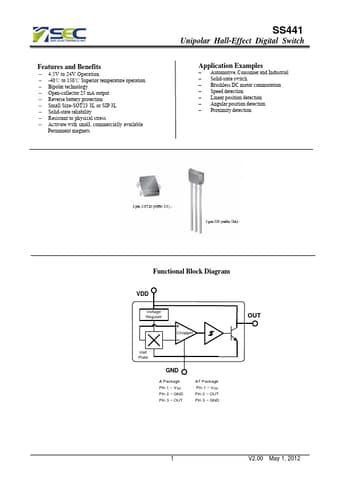

Preview of SS441 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SS441
Manufacturer
SEC
File Size
298.22 KB
Datasheet
SS441_SEC.pdf
Description
Unipolar Hall-Effect Digital Switch
