SPM100GALR1201S3 Datasheet - SEMIPOWEREX

SPM100GALR1201S3, Chopper IGBT Module

SPM100GAL(R)1201S3 Chopper IGBT Module 100A 1200V General .
IGBT power module provides ultra low conduction loss as well as short circuit ruggedness.

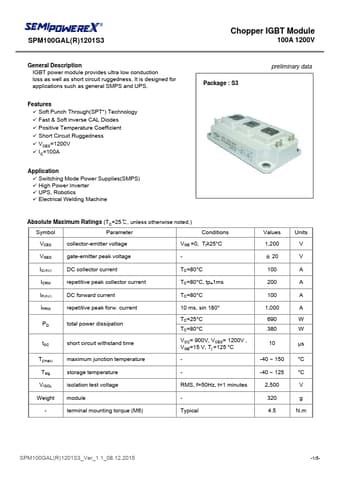

datasheet Preview Page 1 from Datasheet4u.com

SPM100GALR1201S3-SEMIPOWEREX.pdf

Preview of SPM100GALR1201S3 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number:

SPM100GALR1201S3

Manufacturer:

SEMIPOWEREX

File Size:

225.49 KB

Description:

Chopper IGBT Module

Features

* Soft Punch Through(SPT+) Technology
* Fast & Soft inverse CAL Diodes
* Positive Temperature Coefficient
* Short Circuit Ruggedness
* VCES=1200V
