SPM100GB1201S3 - 2-PACK IGBT Module

Description

IGBT power module provides ultra low conduction loss as well as short circuit ruggedness.

It is designed for applications such as general SMPS and UPS.

Features

  • Soft Punch Through(SPT+) Technology.
  • Fast & Soft inverse CAL Diodes.
  • Positive Temperature Coefficient.
  • Short Circuit Ruggedness.
  • VCES=1200V.
  • IC=100A.

📥 Download Datasheet

Datasheet preview – SPM100GB1201S3

Datasheet Details

Part number SPM100GB1201S3
Manufacturer SEMIPOWEREX
File Size 221.49 KB
Description 2-PACK IGBT Module
Datasheet download datasheet SPM100GB1201S3 Datasheet
Additional preview pages of the SPM100GB1201S3 datasheet.

📁 Similar Datasheet

Other Datasheets by SEMIPOWEREX

Full PDF Text Transcription

Click to expand full text

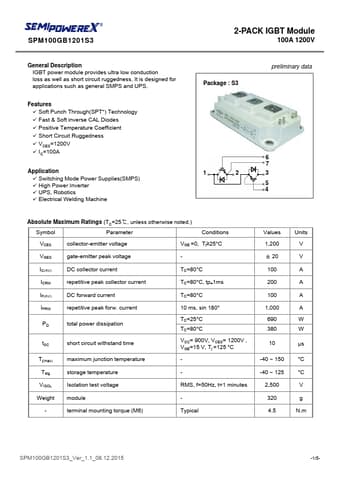

SPM100GB1201S3 2-PACK IGBT Module 100A 1200V General Description IGBT power module provides ultra low conduction loss as well as short circuit ruggedness. It is designed for applications such as general SMPS and UPS. Features  Soft Punch Through(SPT+) Technology  Fast & Soft inverse CAL Diodes  Positive Temperature Coefficient  Short Circuit Ruggedness  VCES=1200V  IC=100A Application  Switching Mode Power Supplies(SMPS)  High Power Inverter  UPS, Robotics  Electrical Welding Machine Package : S3 12 preliminary data 6 7 3 5 4 Absolute Maximum Ratings (TC=25℃, unless otherwise noted.
