MMBZ5V6AL ElectroStatic Discharge Protection Devices

MMBZ5V6AL Description

MMBZ Series ElectroStatic Discharge Protection Devices .
These dual monolithic silicon Zener diodes are designed for applications requiring transient overvoltage protection capability.

MMBZ5V6AL Features

* > Pb
* Free Packages are Available > SOT
* 23 Package Allows Either Two Separate Unidirectional Configurations or a Single Bidirectional Configuration > Working Peak Reverse Voltage Range
* -3~26V > ESD Rating of Class N (exceeding 16 kV) per the Human Body Model > Maximum Clampi

MMBZ5V6AL Applications

* requiring transient overvoltage protection capability. They are intended for use in voltage and ESD sensitive equipment such as computers, printers, business machines, communication systems, medical equipment and other applications. Their dual junction common anode design protects two separate lines

📥 Download Datasheet

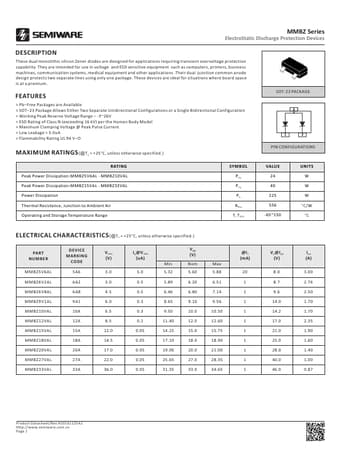

Preview of MMBZ5V6AL PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MMBZ5V6AL
Manufacturer
SEMIWILL
File Size
520.58 KB
Datasheet
MMBZ5V6AL-SEMIWILL.pdf
Description
ElectroStatic Discharge Protection Devices
