SESD12, SESD03 Datasheet - SEMIWILL

SESD12 High Powered Tvs Array

The SESDxx and SESDxxC Series are transient voltage suppressor arrays designed for ESD protection of SMART phones,laptop computers and other portable electronics. These silicon based diodes offer superior clamping voltage and performance compared to other technologies such as MLVs. The SESDxx and SE.

SESD12 Features

* >350 Watts Peak Pulse Power per Line (tp=8/20µs) >Protects One Power or I/O Port >Low clamping voltage >Working voltages: 3V, 5V, 8V, 12V, 15V, 24V,36V >Low leakage current APPLICATIONS >Cell Phone Handsets and Accessories >Microprocessor based equipment >Personal Digital Assistants (PDA’s) >Noteboo

SESD03-SEMIWILL.pdf

This datasheet PDF includes multiple part numbers: SESD12, SESD03. Please refer to the document for exact specifications by model.

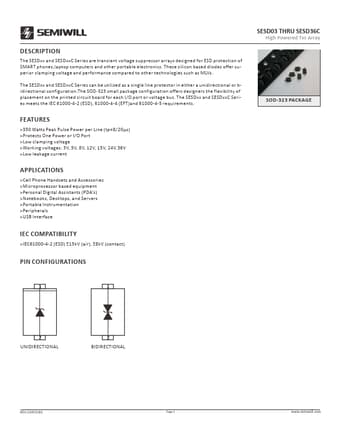

SESD12 Datasheet Preview Page 2 SESD12 Datasheet Preview Page 3

Datasheet Details

Part number:

SESD12, SESD03

Manufacturer:

SEMIWILL

File Size:

120.39 KB

Description:

High powered tvs array.

Note:

This datasheet PDF includes multiple part numbers: SESD12, SESD03.
Please refer to the document for exact specifications by model.
