SC1301A

(SC1301A/B) High Speed Low-Side MOSFET Driver

SEMTECH ELECTRONICS

SC1301A Features

* +4.5V to +16.5V operation Fast rise and fall times (20ns typical with 1000pf load ) 2A peak drive current 5-pin SOT-23 package Enable/disable control TTL-compatible input Inverting or noninverting versions Undervoltage lockout Low supply current -40°C to 85°C ambient temperat

SC1301A General Description

The SC1301A/B is a cost effective single-channel highspeed MOSFET driver. The driver is capable of driving a 1000pF load in 20ns rise/fall time and has a 60ns propagation delay time from input transition to the gate of the power MOSFET. The high current driving capability (2A peak) allows fast switc.

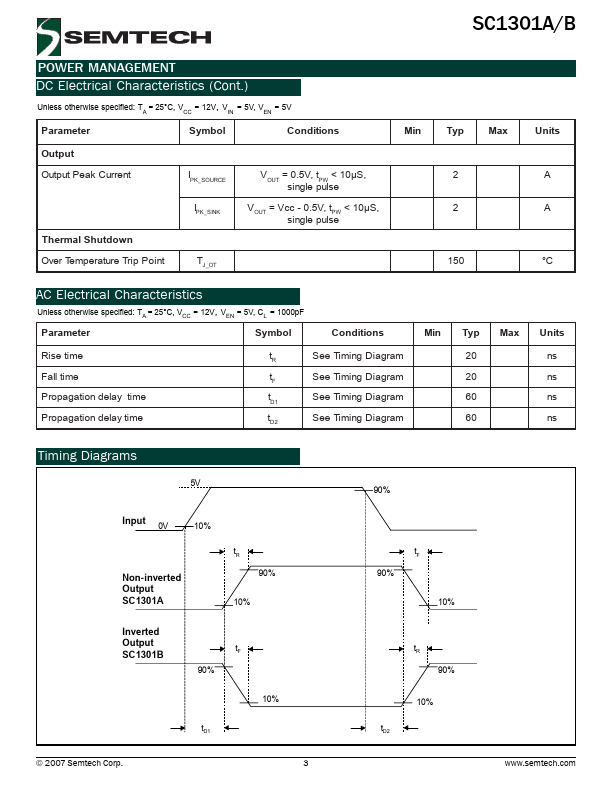

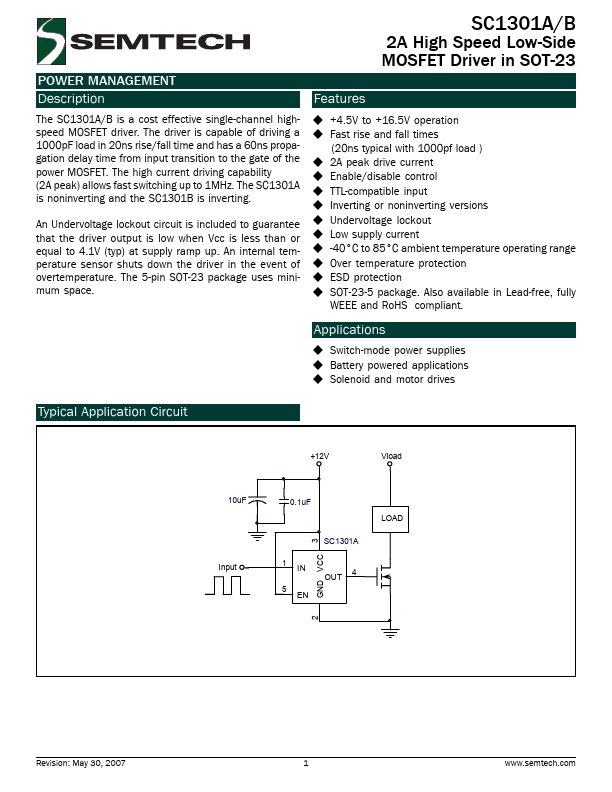

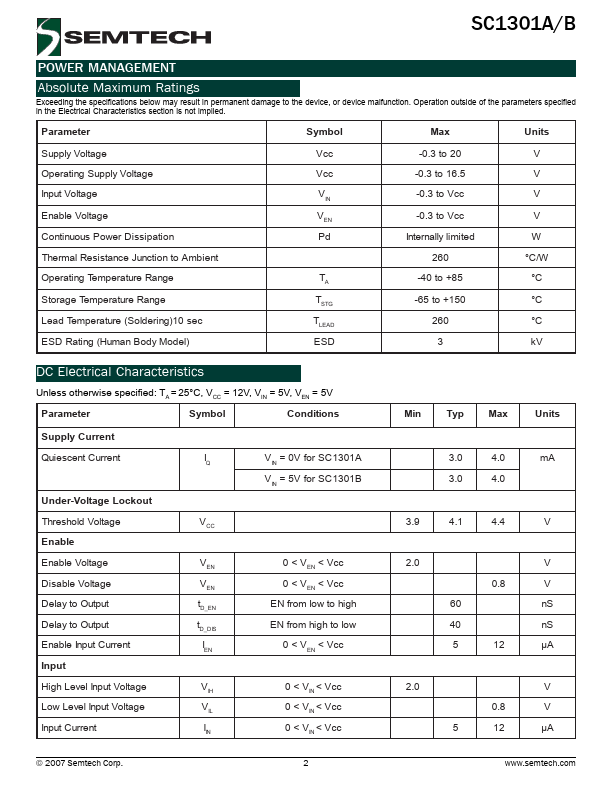

SC1301A Datasheet (192.66 KB)

SC1301A Datasheet Preview — Preview of SC1301A PDF

Datasheet Details

Part number:

SC1301A

Manufacturer:

SEMTECH ELECTRONICS

File Size:

192.66 KB

Description:

(sc1301a/b) high speed low-side mosfet driver.
