SC1301B (SC1301A/B) High Speed Low-Side MOSFET Driver

The SC1301A/B is a cost effective single-channel highspeed MOSFET driver. The driver is capable of driving a 1000pF load in 20ns rise/fall time and has a 60ns propagation delay time from input transition to the gate of the power MOSFET. The high current driving capability (2A peak) allows fast switc.

SC1301B Features

* +4.5V to +16.5V operation Fast rise and fall times (20ns typical with 1000pf load ) 2A peak drive current 5-pin SOT-23 package Enable/disable control TTL-compatible input Inverting or noninverting versions Undervoltage lockout Low supply current -40°C to 85°C ambient temperat

SC1301A_SEMTECHELECTRONICS.pdf

SC1301B Datasheet Preview — This datasheet PDF includes multiple part numbers: SC1301B, SC1301A. Please refer to the document for exact specifications by model.

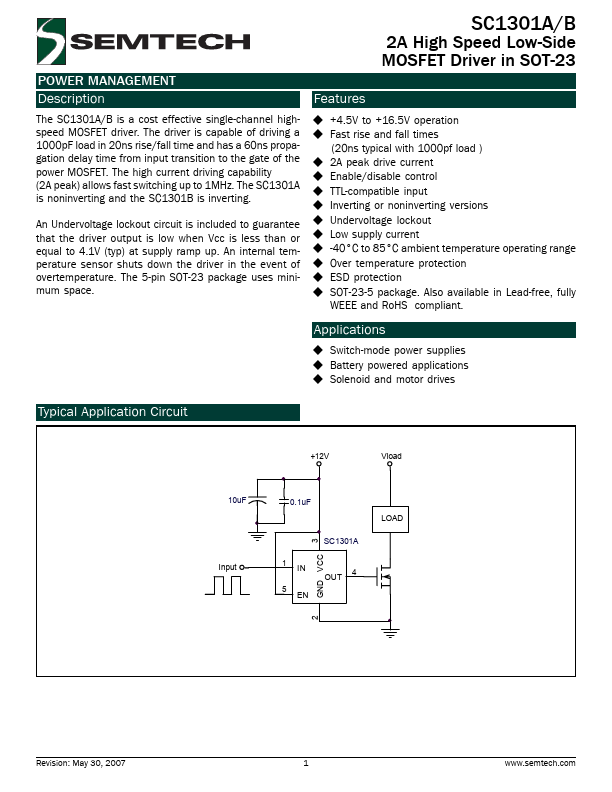

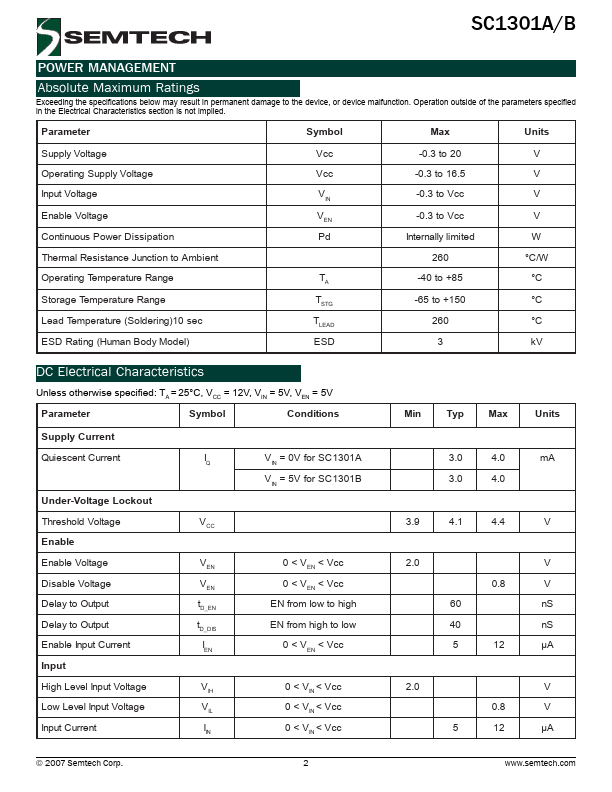

SC1301B Datasheet Preview Page 2

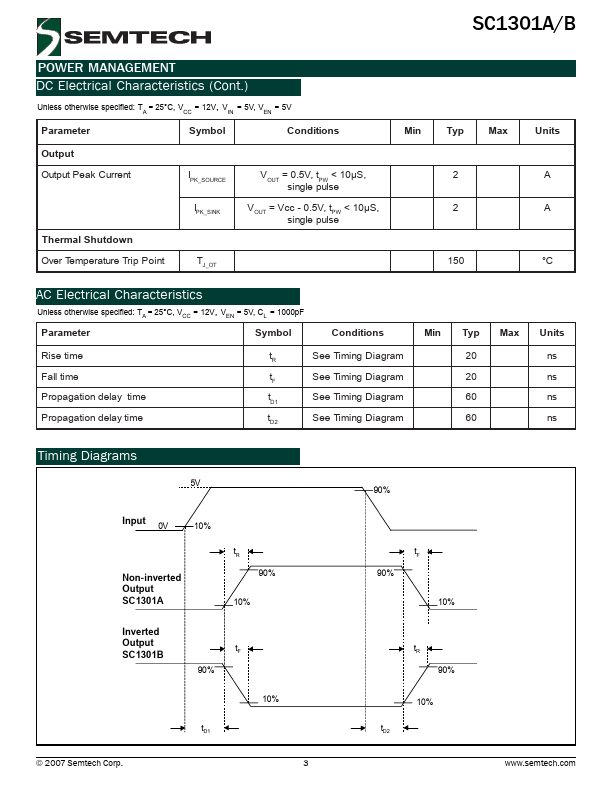

SC1301B Datasheet Preview Page 3
