SC1302F

Dual High Speed Low-Side MOSFET Driver

Semtech Corporation

SC1302F Features

* +4.5V to +16.5V operation Fast rise and fall times (20ns typical with 1000pf load) Dual MOSFET driver 2A peak drive current 40ns propagation delay 8-pin SOIC / MSOP lead free packages. This product is fully WEEE and RoHS compliant Enable/disable control TTL-compatible input Under v

SC1302F General Description

The SC1302A/B/C/D/E/F family are low cost dual lowside MOSFET drivers. These drivers accept TTL-compatible inputs and are capable of supplying high current outputs (> 2A peak) to external MOSFETs. Fast switching allows operation up to 1 MHz. The SC1302A/B/C is available in six configurations: SC1302.

SC1302F Datasheet (223.84 KB)

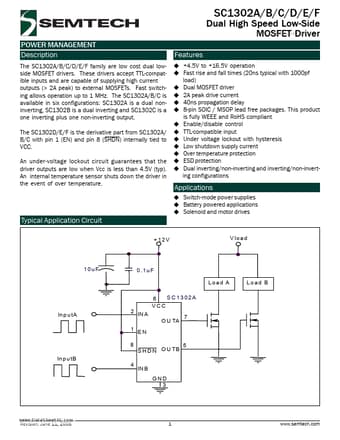

SC1302F Datasheet Preview — Preview of SC1302F PDF

Datasheet Details

Part number:

SC1302F

Manufacturer:

Semtech Corporation

File Size:

223.84 KB

Description:

Dual high speed low-side mosfet driver.
