SC1004

PRECISION SHUNT VOLTAGE REFERENCE

SC1004 Features

* = Trimmed bandgap design (0.8%, 0.32% for

* = Wide operating current range 20µA to 20mA

* = Low dynamic impedance (0.2Ω)

* = SO-8 package APPLICATIONS

* =

* =

* =

* = Micropower circuitry Portable meters Battery powered systems Temperature se

SC1004 General Description

The SC1004(A) is a two terminal precision voltage reference with thermal stability guaranteed over temperature. The SC1004(A) has a typical dynamic output impedance of 0.2Ω.= Active output circuitry provides a very sharp turn on characteristic - the minimum operating current is 20µA, with a maximum .

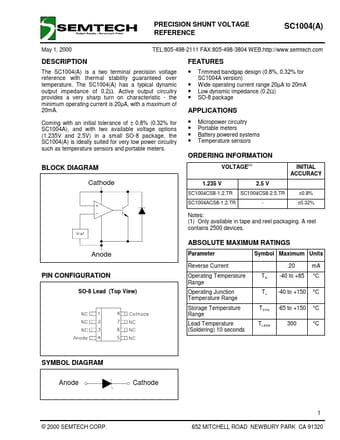

SC1004 Datasheet (60.46 KB)

Preview of SC1004 PDF

Datasheet Details

Part number:

SC1004

Manufacturer:

Semtech Corporation

File Size:

60.46 KB

Description:

Precision shunt voltage reference.
