SC1006 - 1/6 Tones Alarm Generator

Datasheet Summary

Description

SC1006 is a CMOS process to manufacture the alarm sound generator ASIC, built-in voltage regulator circuit, reset capacitor, can directly enter the high-voltage power supply, and omit the diode and the reset capacitor voltage regulator.

Features

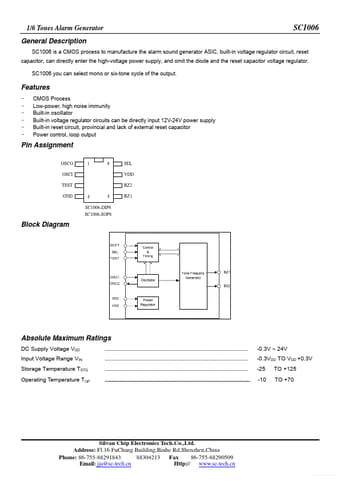

CMOS Process Low-power, high noise immunity Built-in oscillator Built-in voltage regulator circuits can be directly input 12V-24V power supply Built-in reset circuit, provincial and lack of external reset capacitor Power control, loop output Pin Assignment OSCO OSCI TEST GND 4 5 1 8 SEL VDD BZ2 BZ1 SC1006-DIP8 SC1006-SOP8 Block Diagram Absolute Maximum Ratings DC Supply Voltage VDD Input Voltage Range VIN Storage Temperature TSTG Operating Temperature TOP ------------------------------------.
