SC1004A, PRECISION SHUNT VOLTAGE REFERENCE

PRECISION SHUNT VOLTAGE REFERENCE May 1, 2000 SC1004(A) TEL:805-498-2111 FAX:805-498-3804 WEB:http://www.semtech.com .
The SC1004(A) is a two terminal precision voltage reference with thermal stability guaranteed over temperature.

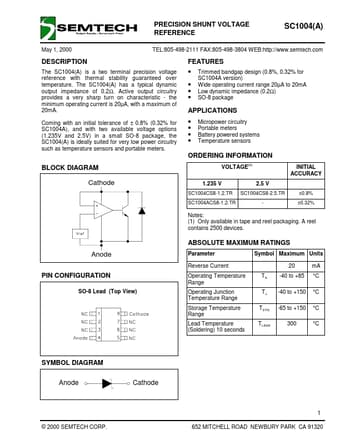

datasheet Preview Page 1 from Datasheet4u.com

SC1004A_SemtechCorporation.pdf

SC1004A Datasheet Preview — Preview of SC1004A PDF

Datasheet Details

Part number:

SC1004A

Manufacturer:

Semtech Corporation

File Size:

60.46 KB

Description:

PRECISION SHUNT VOLTAGE REFERENCE

Features

* = Trimmed bandgap design (0.8%, 0.32% for
* = Wide operating current range 20µA to 20mA
* = Low dynamic impedance (0.2Ω)

Applications

* =
* =
* =
* = Micropower circuitry Portable meters Battery powered systems Temperature sensors SC1004A version) ORDERING INFORMATION BLOCK DIAGRAM VOLTAGE 1.235 V SC1004CS8-1.2.TR SC1004ACS8-1.2.TR (1) INITIAL ACCURACY 2.5 V Cathode SC1004CS8-2.5.TR - ±0.8% ±0.32%
