2SC2001 Datasheet - SEMTECH

2SC2001 - NPN Silicon Epitaxial Planar Transistor

ST 2SC2001 NPN Silicon Epitaxial Planar Transistor for switching and AF amplifier applications.

The transistor is subdivided into three groups, O, Y and G, according to its DC current gain.

On special request, these transistors can be manufactured in different pin configurations.

TO-92 Plastic Package Weight approx.

0.19g Absolute Maximum Ratings (T a = 25 oC) Collector Base Voltage Collector Emitter Voltage Emitter Base Voltage Collector Current Power Dissipation Junction Temperature Storage

2SC2001-SEMTECH.pdf

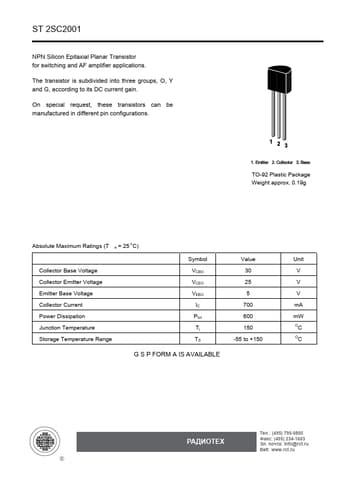

Preview of 2SC2001 PDF
2SC2001 Datasheet Preview Page 2

Datasheet Details

Part number:

2SC2001

Manufacturer:

SEMTECH

File Size:

191.96 KB

Description:

Npn silicon epitaxial planar transistor.
